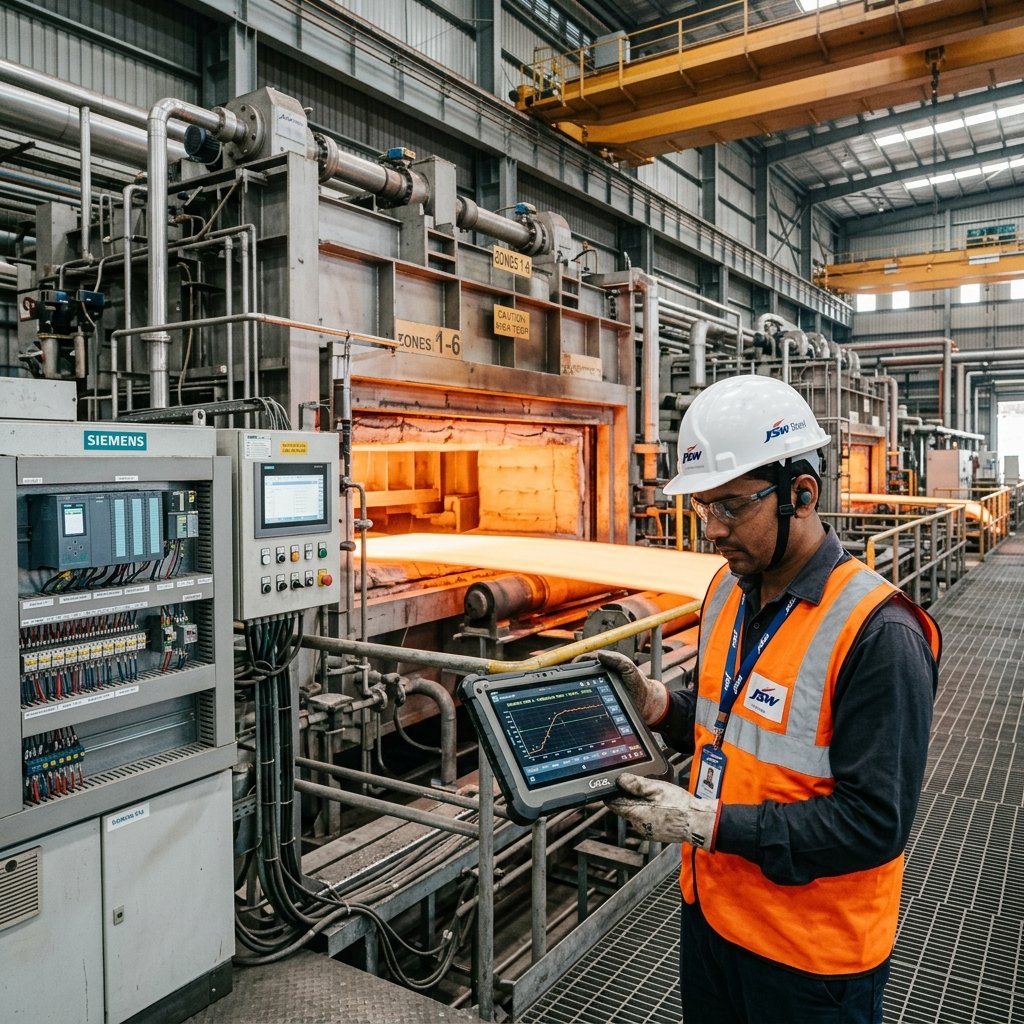

Furnace Temperature Monitoring System and IIoT Integration

The Industrial Problem

Traditional stainless steel plants in India suffer from major operational bottlenecks due to legacy furnace monitoring setups. Manual thermocouple logging is slow, prone to data manipulation, and completely fails to capture brief thermal drops or spikes. Furthermore, thermocouples degrade over time, leading to silent sensor drift that goes undetected until an entire batch fails laboratory tensile or hardness tests. Without unified, real-time dashboards, operations managers have no visibility into the heat treatment line, resulting in delayed burner ignitions, high carbon rejections, uncoordinated conveyor feeds, and massive gas or electricity waste.

• Manual temperature logs lead to error-prone shift records and slow audits.
• Thermocouple sensor degradation causes silent calibration drift and high scrap rates.
• No real-time overheating protection loops risk expensive furnace wall stress.

The Furnace Automation Solution

Compiled Successfully Software Solution designs and commissions a dedicated, end-to-end B2B Furnace Temperature Monitoring System platform. We wire Modbus-enabled dual-wavelength pyrometers, configure remote multi-zone RTD modules, and program advanced PLC logic to process raw sensor signals. These processed variables are fed into a centralized SCADA database and rendered onto high-aesthetic local HMI and remote web dashboards. If a temperature deviation occurs, the PLC automatically triggers burner control actuators to adjust the air-to-fuel ratio, correcting the thermal path within seconds while instantly dispatching SMS/WhatsApp emergency alerts to maintenance supervisors.

• Direct PLC interlocks read multi-zone sensors, stabilizing heat cycles automatically.
• Automated SCADA alerts flag thermal anomalies to operators within milliseconds.
• Centralized dashboards capture digital process values to compile batch heat certs.

Key Benefits

• Reduces continuous hardening scrap and reject rates by up to 35% through live recipe monitoring
• Saves 15% in furnace fuel gas or power consumption via automated air-to-fuel ratio control loops
• Speeds up batch heat cycles by 17% through dynamic temperature holding algorithms
• Generates 100% automated batch quality certificates, eliminating manual clipboard record keeping

Common Applications

• Continuous annealing, hardening, tempering, and normalizing furnace loops
• Multi-zone temperature profiling and real-time SCADA trend logging dashboards
• Direct low-latency connection reading temperature data from existing Siemens S7-1500 Controller with specialized RTD modules networks
• Automated smart alerts monitoring thermocouple health, gas pressure, and burner failures

Dashboard & SCADA Interface Explanation

The custom Siemens WinCC Unified SCADA V19 dashboard built for our Furnace Temperature Monitoring System offers complete, single-pane-of-glass visibility. It displays real-time multi-zone temperature profiles, active heating and cooling rate curves, thermocouple health indices, and gas flow rates. Supervisors can view live thermal trend graphs, modify heat cycle recipes with multi-level secure credentials, and analyze batch-wise temperature records. The interface features glassmorphic widgets, high-contrast thermal gradients representing furnace chambers, and a dedicated alarm log highlighting active sensor faults.

PLC & IIoT Networking Architecture

Our robust PLC and IIoT architecture is engineered for 24/7 reliability on the factory floor. The physical layer features a Siemens S7-1500 Controller with specialized RTD modules, securely wired to Raytek non-contact dual-wavelength infrared pyrometers and Type-S platinum thermocouples via Profinet over Industrial Fiber Ring network. Data buffering is managed on the local controller to prevent data loss during network disruptions. A secure Siemens SIMATIC IOT2050 Gateway gathers the temperature tags and pushes them to our centralized database over encrypted MQTT loops, complying fully with IEC 62443 cybersecurity standards to keep the OT network completely segregated from corporate IT.
