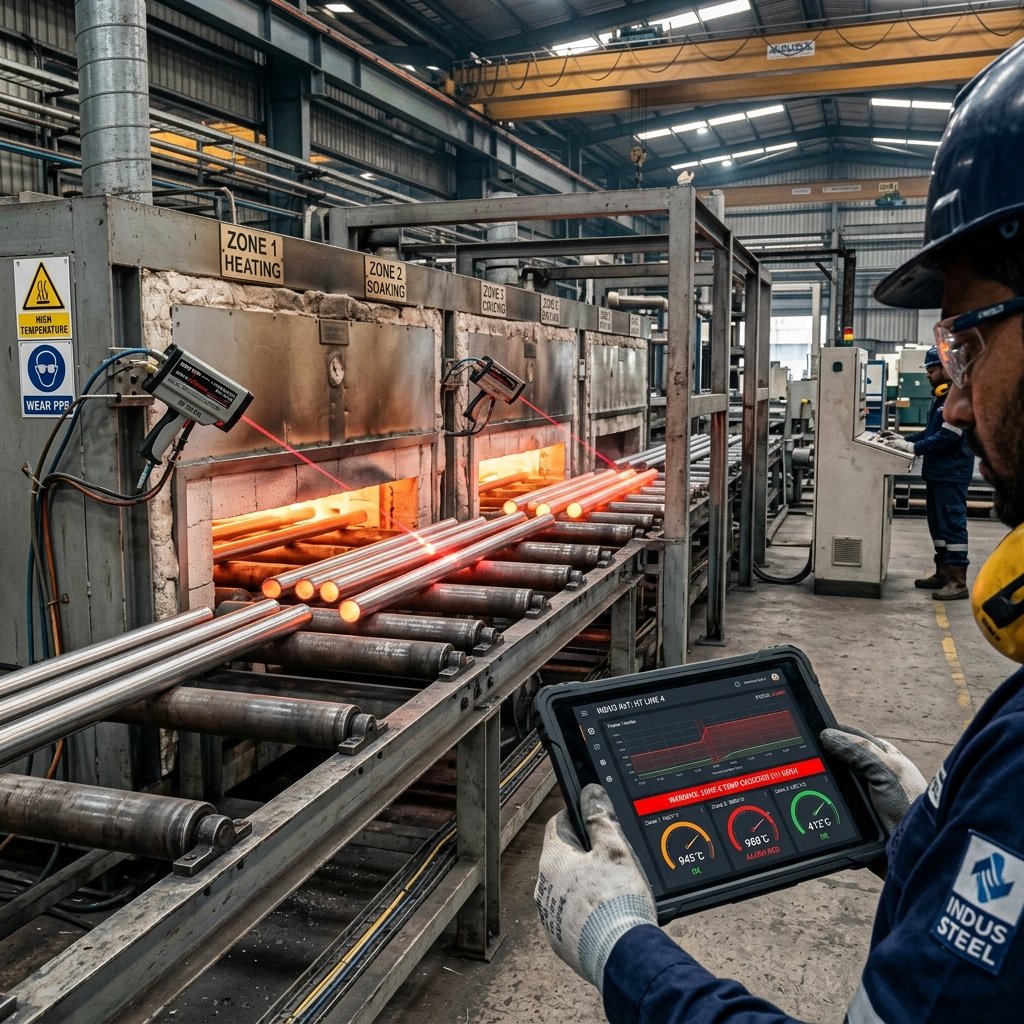

Steel Plant Furnace Monitoring in Haridwar SIDCUL

The Industrial Problem

Continuous annealing and hardening foundries in the Haridwar SIDCUL industrial belt are under extreme pressure to maintain metallurgical consistency. However, traditional reliance on manual clipboards or stand-alone temperature loggers introduces severe risks. Operator logging delays, unrecognized thermocouple degradation, and slow burner response loops result in inconsistent metal hardness, causing high B2B product rejections and raw material wastage. Furthermore, manual logging provides no real-time alerts, leaving engineers in a reactive stance where thermal overruns are only caught after a batch is completed.

• Manual temperature logs lead to error-prone shift records and slow audits.
• Thermocouple sensor degradation causes silent calibration drift and high scrap rates.
• No real-time overheating protection loops risk expensive furnace wall stress.

The Furnace Automation Solution

Compiled Successfully Software Solution delivers an intelligent, non-disruptive B2B solution for factories in Haridwar SIDCUL. We configure Fluke Process Instruments infrared linescanners and dual-element Type-B thermocouples and link them to your installed Rockwell Allen-Bradley ControlLogix 5580 system panels via EtherNet/IP with Device Level Ring (DLR) redundancy. A secure local edge gateway streams real-time temperature data to a centralized SCADA database, rendering it on high-aesthetic dashboards. By programming automatic burner valve control loops in the PLC, our system instantly regulates the heating curve if a drift is detected, stabilizing the heat treatment process while dispatching immediate SMS/WhatsApp emergency alerts.

• Direct PLC interlocks read multi-zone sensors, stabilizing heat cycles automatically.
• Automated SCADA alerts flag thermal anomalies to operators within milliseconds.
• Centralized dashboards capture digital process values to compile batch heat certs.

Key Benefits

• Reduces metallurgical scrap in Haridwar SIDCUL by up to 17% through live temperature alarms
• Speeds up furnace OEE by 22% via real-time speed and heat hold logs
• Lowers plant utility and gas costs by 16% by optimizing machine burner runtime loops
• Accelerates shift quality reporting by 40%, replacing manual registers completely

Common Applications

• High-accuracy sub-metering and target counting on critical FMCG Utilities & Electrical Heat Sinks machinery feeders
• Centralized SCADA and web-based factory digitisation dashboards with custom shift filters
• Seamless integration connecting smart sensors directly to existing Rockwell Allen-Bradley ControlLogix 5580 system networks
• Automated predictive maintenance alerts monitoring speed, thermal load, and vibration trends

Dashboard & SCADA Interface Explanation

The specialized Ignition SCADA by Inductive Automation platform configured for factories in Haridwar SIDCUL provides comprehensive operational visibility. The web-based dashboard displays real-time multi-zone thermal curves, active cooling rates, active alarms, and historical recipe logs. Operators can monitor key performance indicators (KPIs) via local touch HMIs, while directors can review plant-wide furnace OEE remotely. The interface uses HSL tailored colors, smooth glassmorphic widgets, and live gauges, highlighting active anomalies in high-visibility amber and red to accelerate response speeds.

PLC & IIoT Networking Architecture

Our robust PLC and IIoT architecture is engineered to run 24/7 in demanding metallurgical environments in Haridwar SIDCUL. The field layer features high-accuracy Fluke Process Instruments infrared linescanners and dual-element Type-B thermocouples wired directly to a Rockwell Allen-Bradley ControlLogix 5580 system utilizing EtherNet/IP with Device Level Ring (DLR) redundancy. The PLC buffers cycle data locally to protect against communication loss. A secure Allen-Bradley 1783-IM12T Industrial Gateway transmits the temperature tags to our centralized database over encrypted MQTT channels. This ensures rigorous IT/OT network segregation in strict compliance with IEC 62443 industrial cybersecurity standards, protecting your physical assets from external risks.
