Industrial Furnace IoT Dashboard & Analytics

The Industrial Problem

Traditional stainless steel plants in India suffer from major operational bottlenecks due to legacy furnace monitoring setups. Manual thermocouple logging is slow, prone to data manipulation, and completely fails to capture brief thermal drops or spikes. Furthermore, thermocouples degrade over time, leading to silent sensor drift that goes undetected until an entire batch fails laboratory tensile or hardness tests. Without unified, real-time dashboards, operations managers have no visibility into the heat treatment line, resulting in delayed burner ignitions, high carbon rejections, uncoordinated conveyor feeds, and massive gas or electricity waste.

• Manual temperature logs lead to error-prone shift records and slow audits.
• Thermocouple sensor degradation causes silent calibration drift and high scrap rates.
• No real-time overheating protection loops risk expensive furnace wall stress.

The Furnace Automation Solution

Compiled Successfully Software Solution designs and commissions a dedicated, end-to-end B2B Industrial Furnace IoT Dashboard platform. We wire Modbus-enabled dual-wavelength pyrometers, configure remote multi-zone RTD modules, and program advanced PLC logic to process raw sensor signals. These processed variables are fed into a centralized SCADA database and rendered onto high-aesthetic local HMI and remote web dashboards. If a temperature deviation occurs, the PLC automatically triggers burner control actuators to adjust the air-to-fuel ratio, correcting the thermal path within seconds while instantly dispatching SMS/WhatsApp emergency alerts to maintenance supervisors.

• Direct PLC interlocks read multi-zone sensors, stabilizing heat cycles automatically.
• Automated SCADA alerts flag thermal anomalies to operators within milliseconds.
• Centralized dashboards capture digital process values to compile batch heat certs.

Key Benefits

• Reduces continuous hardening scrap and reject rates by up to 34% through live recipe monitoring
• Saves 14% in furnace fuel gas or power consumption via automated air-to-fuel ratio control loops
• Speeds up batch heat cycles by 16% through dynamic temperature holding algorithms
• Generates 100% automated batch quality certificates, eliminating manual clipboard record keeping

Common Applications

• Continuous annealing, hardening, tempering, and normalizing furnace loops
• Multi-zone temperature profiling and real-time SCADA trend logging dashboards
• Direct low-latency connection reading temperature data from existing Delta AS300 High-Performance PLC system networks
• Automated smart alerts monitoring thermocouple health, gas pressure, and burner failures

Dashboard & SCADA Interface Explanation

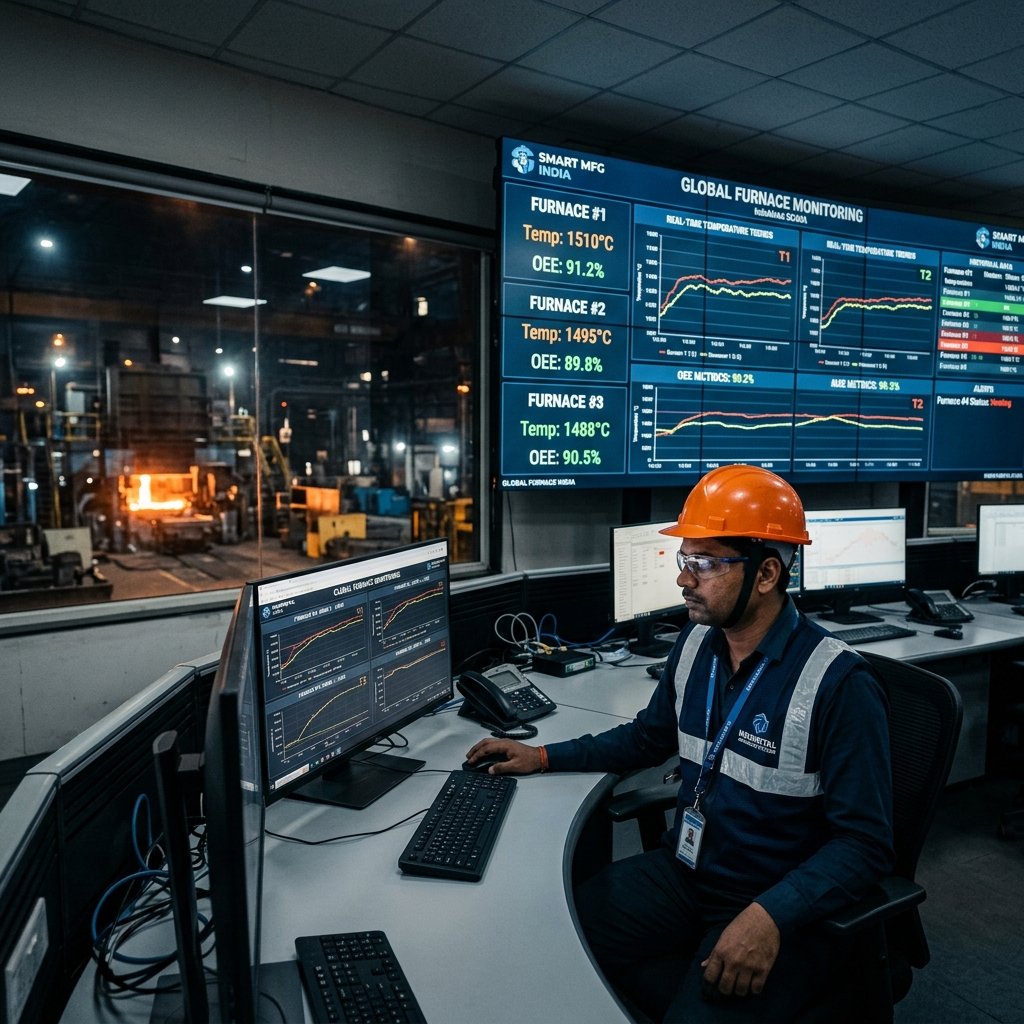

The custom Delta DIAView Automation Suite dashboard built for our Industrial Furnace IoT Dashboard offers complete, single-pane-of-glass visibility. It displays real-time multi-zone temperature profiles, active heating and cooling rate curves, thermocouple health indices, and gas flow rates. Supervisors can view live thermal trend graphs, modify heat cycle recipes with multi-level secure credentials, and analyze batch-wise temperature records. The interface features glassmorphic widgets, high-contrast thermal gradients representing furnace chambers, and a dedicated alarm log highlighting active sensor faults.

PLC & IIoT Networking Architecture

Our robust PLC and IIoT architecture is engineered for 24/7 reliability on the factory floor. The physical layer features a Delta AS300 High-Performance PLC system, securely wired to Honeywell multi-zone ceramic insulated thermal sensor rods and control actuators via Modbus RTU over shielded RS485 and Modbus TCP. Data buffering is managed on the local controller to prevent data loss during network disruptions. A secure Delta DX-2100 Industrial 3G/Ethernet Cloud Gateway gathers the temperature tags and pushes them to our centralized database over encrypted MQTT loops, complying fully with IEC 62443 cybersecurity standards to keep the OT network completely segregated from corporate IT.
